Hohner “Up To Date” chromatically tuned

Just recently,  Phil Sheppard (Shep), author of the wonderful blog “Harmonica Riff Raff“, made a spectacular find while exploring some antique shops in the middle of Tasmania, Australia. The harmonica he found, a chromatically tuned Up To Date model manufactured by Hohner, is most likely the first real chromatic harmonica ever commercially available.
It was first mentioned in the 1898 edition of the Music Trade Review:
“We have just received the latest novelty in mouth-harmonicas. It is the most recent of Hohner’s famous products in that class, and is first-class in every particular. The name ‘Up-to-Date’ describes it exactly. It is chromatically tuned and is the only mouth-harmonica on the market having sharps and flats.”

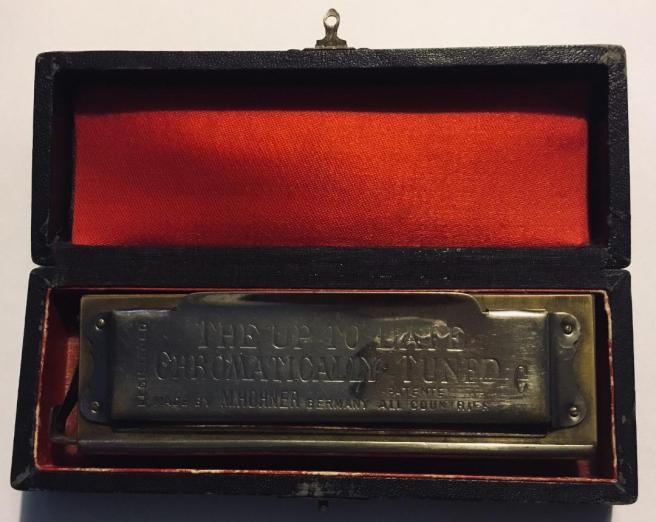

Hohner “Up To Date” chromatically tuned harmonica, from Phil Sheppard’s collection

According to Pat Missin, Hohner produced more than sixty different models bearing the name Up To Date.  Some of them must have come out around the same time (one patent dates back to August 24th, 1897) as the chromatically-tuned version.
Even though the cover plate states “patented in all countries”, I was not able to trace a patent for this chromatic model.
Interestingly enough, F.A. Böhm owned patent #100650, granted in 1898. The slider in the drawing clearly resembles that of the Up To Date one. But the harmonica described was not meant to be played chromatically but rather to produce trills.
By taking a closer look at the slider, one realizes that the reed plates extend at the top and therefore create the track for the slider. The mouthpiece is situated above the reed plates. Sitting on top of a celluloid strip and in between the reed plates resides the slider. That is a very clever construction. I have never seen any other manufacturer using such an approach.
I do see a problem with this construction though. Maybe that is why this was not used in later chromatic harmonicas. In order to get that to work, the reed plates must be spot on and evenly attached to the comb, otherwise it won’t be airtight. This is certainly not easy to do.

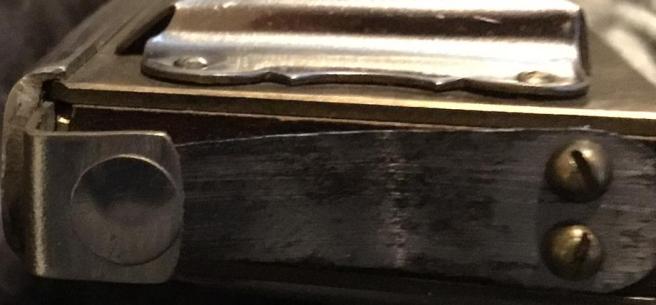

Closer caption of the slider construction

Since the slider divides the chambers vertically (not horizontally as in later chromatic harmonicas), my assumption is that the comb consists of 20 single chambers. Each chamber hosting a blow and draw reed.

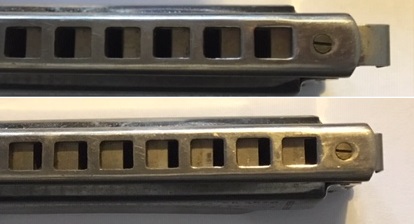

Slide in either normal position or pushed in

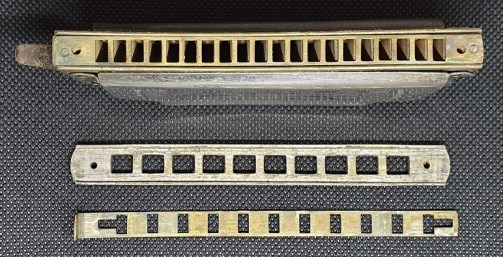

Slider disassembled (picture, courtesy Mark Hand)

I was curious to find out more about the order of the reeds.  Shep was so kind to provide some audio samples:

Based on these samples, it is pretty clear to me that the notes order consist of  a C and a C# (slide pushed in) scale. Just like later chromatic models.

I am really surprised how advanced the Up To Date chromatic was for its time. It puzzles me that it was commercially not very successful. Maybe because it was such a new concept. Another possibility was that the slider did not seem to work very smoothly (as confirmed by Shep). Perhaps that is the reason it took Hohner another 12 years to come out with “The Chromatic Harmonica“.

Update: based on additional photos provided by Joel Andersson I can add more info to this article:
looks like Hohner worked on different variants of the Up-To-Date at the time. This prototype uses a different mouthpiece including a button for the slider. When pushing the button the whole mouthpiece moves to the left and when releasing back to the right.

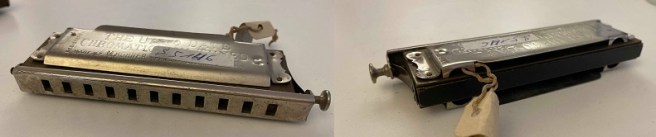

A different variant of the Up-To-Date chromatic with slider button, courtesy Joel Andersson
Video demo of Up-To-Date chromatic slider button, courtesy Joe Andersson

In addition, this prototype with “The Chromatic Harmonica” covers but the Up-To-Date mouthpiece and slider might have been from around 1910 when Hohner introduced the first “The Chromatic Harmonica”. It seems like this prototype already uses an internal spring which would have been way ahead of its time. The internal spring was introduced by Hohner around 1930.

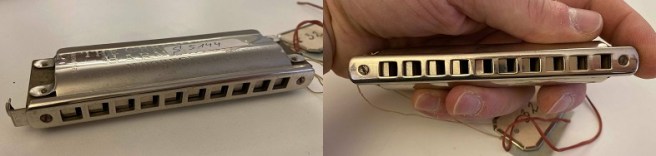

Additional prototype with “The Chromatic Harmonica” covers, courtesy Joel Andersson

Additional Info: Phil Sheppard (Shep) added on his Harmonic Riff Raff blog additional interesting info on his find: Chromatically Chromonica Chronologically

Great news! The harmonica museum in Trossingen was able to acquire another Hohner “Up To Date” chromatically tuned harmonica. It was donated by my fellow harmonica collector Mark Hand.
Thank you so much for that! There is an article (German and English) about the “Up To Date” on the museum’s website. Thank you for mentioning my blog, Martin! 🙂
